n-Alkanes in Surficial Soils of Basrah City, Southern Iraq

Al-Saad H.T.1 , Farid W A.2 , Ateek A.A.3 , Sultan A.W. A.3 , Ghani A.A.1 , Mahdi S.1
1. Dept. Of Marine Environmental Chemistry- Marine Science Center, University of Basrah, Iraq
2. College of Health and Medical Technology, Southern Technical University, Basrah, Iraq
3. Technical College, Southern Technical University, Basrah, Iraq
Author    Correspondence author
International Journal of Marine Science, 2015, Vol. 5, No. 52   doi: 10.5376/ijms.2015.05.0052
Received: 06 Jul., 2015    Accepted: 07 Aug., 2015    Published: 07 Sep., 2015
© 2015 BioPublisher Publishing Platform
This is an open access article published under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
Preferred citation for this article:

Al-Saad H.T., Farid W A., Atik A.A., Sultan A.W. A,Ghani,A.A,and Mahdi S., 2015, n-Alkanes in surficial soils of Basrah city, Southern Iraq, International Journal of Marine Science, 5(52): 1-8 (doi: 10.5376/ijms.2015.05.0052)


A study has been carried out to determine the distribution of aliphatic hydrocarbons in surface soils of Basrah city, southern Iraq. One hundred twenty eight surface soil samples (0-10 cm depth) were collected from sixteen sites around Basrah city covering commercial ports, industrial and oil operational locations, urban and rural areas. Hydrocarbons were extracted with mixture of benzene: methanol using soxhlet technique and fractioned with silica-alumina column. Characterization of individual hydrocarbon components was carried out using gas chromatography-flame ionization detector. Average of the total identified n-alkanes concentrations in soil samples were found ranging from 03.575 to 21.266 µg g-1 dry weight. Carbon Preference Index (CPI) values for n-alkanes varied between 0.893 and 5.57. The isoprenoids, pristane and phytane were detected in most soil samples. Unresolved Complex Mixture (UCM) values ranged from 5.2 to 12.3 µg g-1 dry weight. No significant correlation between soil , % Total Organic Carbon (% TOC) and the concentrations of n-alkanes was observed. Results indicated that the aliphatic hydrocarbons were from both biogenic and anthropogenic sources. Generally, the results show that the total n-alkanes concentrations were higher in winter and autumn than that recorded for spring and summer.

Soil pollution; n-alkanes; Gas Chromatography; Basrah city

Soil contamination by hydrocarbons is an important problem in many areas of the oil-producing countries. Hydrocarbons can contaminate soil through many sources that include leakage of storage tanks and pipelines, land disposal of petroleum wastes and accidental spills (Barakat et al., 2001; Kèlomè et al., 2012). Although most of the hydrocarbons present in the soil resulting from anthropogenic activities. Soil contains relatively small amounts of natural hydrocarbons (biogenic) such as those synthesized by certain organisms (e.g. higher plants and microorganisms) (Zhang et al., 2012). The hydrocarbons in soil are strongly related to the sorbet organic matter and this depended on the nature of the hydrocarbon and the organic matter content (Sadler and Connell, 2003). However, the hydrocarbons can be removed from the soil by different processes such as volatilization, reaction, leaching and biodegradation. Some of these processes take a long time to remove hydrocarbons from the soil depending on the environmental conditions, so the part of these compounds will remain steady in the soil and become more resistant (Kèlomèet al., 2012; Olubunmi et al., 2012). The increase in the concentrations of hydrocarbons in the soil may cause adverse effects on the ecosystem, and some hydrocarbons are considered carcinogenic and mutagenic where they can cause serious health problems for humans and other living resources (Iturbe et al., 2004; Teaf et al., 2008).

Basrah, a city located in southern Iraq be rich in oil. Many oil operations had achieved in this city after 2003 by many international oil companies, So high concentrations of hydrocarbons expects their presence in its soil. In addition to the oil operations there are other sources of petroleum hydrocarbons may also contaminate the soil of this region include industrial factories, electric power stations and gas production plants. However, there are few studies estimated the levels of petroleum hydrocarbons in this city (Douabul et al., 2012), which must have precedence from the environmental point of view. Thus, the present study was carried out to determine the distribution and seasonal variations of petroleum hydrocarbons in sixteen sites in Basrah governorate. The results obtained in this study can service as baseline for future environmental impact assessment of oil operations.

Material and Methods
Four types of sampling sites were selected across Basrah city for soils collection. The first type of sites are commercial ports (Al-Fao and Um-Qasir) and their soils were heavily influenced by oil exportation. The second type is industrial and/or oil operational locations including: Al-Shiabah, Al-Rumella, Kor-Al-Zubair, and Al-burjsia. These sites are specific to anthropogenic activities. The third type of sites is urban areas including: Center of Basrah, Saffwan, Al-Zubair and Al-Tanoma. The soils of these areas are generally subject to a variety of activities in a different degrees such as traffic, houses and workshops (mechanics, carpentry etc), sale of goods of all kinds and petroleum products handling facilities. The last type of sites is rural areas (Garmat Ali, Al-Seeba, Al-Daer, Ras-Al-Bisha and Abu Al-Khasib) and their soils considered low contaminated and are sometimes covered with vegetation.

A total of one hundred twenty eight (128) surface soil samples (0-10 cm depth) were collected using hand auger from the above stations during 2015 to account for winter, spring, summer, and autumn seasons. The locations in Basrah city for the collection of soils are shown in Figure (1) and were geo-located with Global Positioning System (GPS) to ensure consistency as given in Table (1).

Figure 1 Study areas and sampling locations in the Basrah city



Table 1 Soil sampling sites in Basrah city


Soil samples were wrapped in aluminum foil and placed in sterilized containers and kept in the laboratory deep freeze. The samples then were freeze-dried, grounded finely by agate mortar and sieved through a 62 μ stainless steel sieve. The Total Organic Carbon (TOC) in soil samples were analysed using Walkey’s and Black titration method, in which the organic carbon is oxidized by dichromate ions, and the quantity of excess dichromate ions is then back titrated with ferrous ion.

The method used to extract, fractionate, and analyzed the hydrocarbons from the soil was based upon that of Jeng and Huh (2006) and Tuteja et al., (2011) with some modification as indicated. A 25 g amount of freeze-dried soil was placed in soxhlet apparatus and extracted with 150 ml benzene: methanol mixture (3:1) for 8 hours. The extract was storage and the soil was further extracted with fresh solvents. The combined extract was then reduced in volume to 10 ml by a rotary vacuum evaporator and was sabonified for 2 hours with a solution of 4N KOH in 1:1 benzene: methanol. Then the extract was dried by anhydrous Na2SO4 and concentrated by a stream of nitrogen. The concentrated extract was separated into two fractions by column chromatography. The column contained 8 g of 5 % deactivated alumina (100-200 mesh) on the top and silica (100-200 mesh) in the bottom which were previously extracted with methylene chloride for 36 hours, dried at 130°C for 24 hours, and deactivated with deionized water. The extract was applied to the head of column. The first fraction containing the aliphatic hydrocarbons was eluted from column with n-hexane and the second with benzene. The second fraction saved for further analysis and the composition of only the first fraction will be discussed. After most of the solvent was removed from the n-hexane fraction, the sample was then analyzed in a Allegent capillary gas chromatography (GC) in which the helium gas was used as a carrier gas with a linear velocity of 1.5 ml minutes-1. The operating temperatures for detector and injector were 350°C and 320°C, respectively. The silica capillary column was operated under initial, final and rate temperatures that programmed as follows: Initial temperature was 60°C for 4 min while final temperature was 280°C for 30 min and rate was 4°C/ minutes.

Quantification of peaks and identification of hydrocarbons were done by computing integrator. Unresolved Complex Mixture (UCM) was measured using planimetry. The Odd and Even n-alkane Predominance Index (OEPI) and the Carbon Preference Indices (CPI) were used to indicate the general source of hydrocarbons whether their origin was biogenic or anthropogenic (Askari and Pollard, 2005; Zrafi et al., 2013). Pristane/Phytane ratio and the Unresolved Complex Mixture index (UCM) were used as indicators of petroleum contamination (Tolosa et al., 2005; Wang et al., 2011) and to estimate the degree of bacterial degradation (Punyu et al., 2013).

For quality assurance, the laboratory blank and spiked matrix (internal standard spiked into soil) was analyzed. Results showed that there were no significant background interferences. Recovery assays for standards aliphatic compounds ranged from 85% to 91%. Standard deviation for the method was less than 10 % based on replicate analysis. All concentrations were expressed on a soil dry weight basis.

Results and Discussion
The average concentrations of total n-alkanes in soils of Basrah city and the n-alkanes calculated indies are listed in Table (2, 3, 4 and 5). The concentrations ranged between 3.575 and 21.266 µg g-1 dry weight, with an overall average of 9.152 µg g-1 dry weight. Insufficient documentation exists for total n-alkanes content in Basrah city soils. Results obtained from the present study show that samples taken from the soils of stations Ras-Al-Bisha, Al-Qurna, Al-Seeba, Garmat Ali, Abu Al-Khasib, Saffwan, Al-Daer, Al-Tanoma, and Al-Zubair displayed relatively low values of total n-alkanes, ranging from 3.575 to 5.467 µg g-1 dry weight. These low total n-alkanes concentrations may be regarded as the natural background levels in these areas. Relatively high concentrations of total hydrocarbons (10.88 to 21.266 µg g-1 dry weight) were found in those soils collected from stations of Al-Rumella, Al-Shiabah, Al-burjsia, Kor-Al-Zubairand, Center of Basrah, Al-Fao, and Um-Qasir which associated with discharges of petroleum wastes. For example, sampling stations Al-Rumella, Al-Shiabah, Al-burjsia, and Kor-Al-Zubair hosted the largest oil refineries, gas production plant and petrochemical factory as well as these stations represented the sites of crude oil extraction and production (oilfields). Station Center of Basrah received petroleum wastes from houses and workshops activities, gasoline stations, transportation and industries activities, electrical generating plants and units, leakages from tanks or tanker trucks and dump of waste petroleum by-products on soils. Al-Fao and Um-Qasir ports are stations suspected to be influenced by oil exportation. Figure (2) shows the spatial concentrations profiles of total n-alkanes among different sampling stations.

Table 2 Average of n-alkanes concentrations (μg g-1) and standard error of the soil of Basrah city during the study period


Table 3 Average of odd and even n-alkanes, CPI, UCM, pristane and phytane, and pristane/phytane ratio values of the soil of Basrah city during the study period


Table 4 Average of n-alkanes concentrations (μg g-1) and standard error of the soil of Basrah city during the study period


Table 5 Average of odd and even n-alkanes, CPI, UCM, pristane and phytane, and pristane/phytane ratio values of the soil of Basrah city during the study period


Figure 2 The spatial profiles of the total of n-alkanes concentrations average of the Basrah city soil


The concentrations of total n-alkanes in soils from 16 sites varied from season to season (Table 5 and Figure 3), showing a decreasing order of winter (average= 12.587 μg g-1) > autumn (average= 10.054 μg g-1) > spring (average= 7.416 μg g-1) > summer (average= 6.552 μg g-1), with the winter season being the highest. Williams et al., (2006) reported that temperature represents one of the most important factors limited the rates of hydrocarbons microbial degradation in the winter. It is possible that the weather impacted the activities of the microorganisms in the soils, which degrade the hydrocarbons. The high temperature seemed to offer the best environmental conditions to support the highest rates of hydrocarbons biodegradation. During the warmer months, hydrocarbons biodegradation is rapid while during the colder month the biodegradation process is less efficient. Hence, biodegradation was the most effective in the spring and summer seasons of Basrah city soils.

Figure 3 The spatial trend of the total of n-alkanes concentrations of the Basrah city soil during different season


The gas chromatographic profiles of n-alkanes in the soil samples are shown in (Figure 4). The GC traces are dominated by n-alkanes extending from C11 to C34. n-alkanes, representing two distinct sources, are evident on the basis of their distribution pattern in samples collected. For stations Al-Rumella, Al-Shiabah, Al-burjsia, Kor-Al-Zubairand, Center of Basrah, Al-Fao, and Um-Qasir which the most abundant n-alkanes are generally C14 to C24, while the least abundant are the n-alkanes of C27, C29 and C31. The dominance of the n-alkanes in the range C18 to C24, suggests relatively petroleum inputs (Harji et al., 2008; Wang et al., 2011). This has been verified by the presence of a strong UCM in the GC profiles. Such compounds, resistant to biological degradation, have been considered as the environmental indicators of long-term petroleum-related contamination (Jeng and Huh, 2006; Punyu et al., 2013). The CPI is also an index used for determining the sources of n-alkanes. These stations presented lower values around 1.0 indicating inputs of n-alkanes from petroleum related sources (Ekpo et al., 2012; Zrafi et al., 2013) Figure (5 and 6) show the spatial trend of UCM and CPI in soil of Basrah city. At stations Ras-Al-Bisha, Al-Qurna, Al-Seeba, Garmat Ali, Abu Al-Khasib, Saffwan, Al-Daer, Al-Tanoma, and Al-Zubair the main features in GC profiles are notably different from the above stations. In these stations, the long chain compounds prevailed with the C max at C27, C29 and C31 and presented an elevated odd to even carbon number preference as reflected in the high CPI values. This pattern is characteristic of higher plant waxes and thus reveals the occurrence of prominent terrestrial inputs to these sampling sites (Harji et al., 2008). However, the n-alkanes profile indicates that contribution from plant wax hydrocarbons is over shadowed in samples by n-alkanes of petroleum origin. This is obvious by the ratio of pristane to phytane and the presence of high relative abundance of UCM.

Figure 4 Gas chromatogram of n-alkanes from surface soil at stations Center of Basrah (a) and Al-Zubair (b)

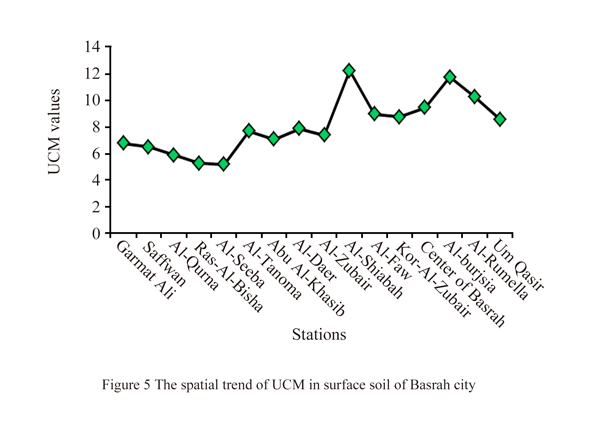

Figure 5 The spatial trend of UCM in surface soil of Basrah city


Figure 6 The spatial variation of CPI in surface soil of Basrah city


Table 6 Total of n-alkanes concentrations (µg g-1) of the soil of Basrah city during different season and % TOC values


The pristane and phytane (isoprenoid compounds) were present in most soil samples. They are common indicators for petroleum contamination. The pristine to phytane ratio varies between oils and is thought to reflect the depositional environment of the original source rocks (Wang et al., 2011). A relative high concentration of pristine alone indicates a biogenic source. In uncontaminated soils, the pristine to phytane ratio is typically between 3 and 5 (Punyu et al., 2013). However, pristane to phytane ratio was low (0.823-1.100) in most of the present samples, indicating mainly petroleum input. The spatial trends of pristane to phytane ratio in soil of Basrah city are shown in Figure (7).

Figure 7 The spatial trend of pristine to phytane ratio in surface soil of Basrah city


The soils of the present study area contained relatively low TOC, with values ranging from 0.61 % to 0.85 %. No significant correlation between % TOC and concentrations of total n-alkanes was found (r= 0.189). This suggested that TOC did not play the important role in the distribution of hydrocarbons in the soils of recent area.

The survey determined the background information of aliphatic hydrocarbons concentrations in the soil of Basrah province and their distribution in the industrial area and urban and rural regions surrounding them. The data can be used in the environmental impact assessment in future studies. The concentration of total aliphatic hydrocarbons in soil ranged from 3.575 to 21.266 µg g-1 dry weight. Higher concentration of total aliphatic hydrocarbons was accumulate in the city sites which associated with discharges of petroleum wastes (e.g. Al-Rumella, Al-Shiabah, Al-burjsia, Kor-Al-Zubairand, Center of Basrah, Al-Fao, and Um-Qasir). Based on the distribution patterns and diagnostic indices, it can be concluded that the n-alkanes in the soil of Basrah city were mainly from both biogenic and anthropogenic sources. Refined oils and gas production plants, power plants, oil wastes discharges, transportation, and domestic activities can be potential sources of hydrocarbons at the sites sampled. Similar results have been reported by several authors for example (Kèlomè et al., 2012). On the other hand seeps from oil deposits, degradation of organic matter, and synthesis by certain organisms might represent the natural sources (Zhang et al., 2012). We should make every effort to reduce the waste oil plants through the application of outfall permits to determine the permissible levels on the basis of the most toxic fractions of oil released into the environment. In addition, some hydrocarbons should be carefully monitored in the soil in order to provide minimum acceptable levels within the industrial areas and urbanization to humans, animals and plants.


Apitz S.E. and Meyers-Schulte K.J.,  1996, Effects of substrate mineralogy on the biodegradability of fuel components, Environmental Toxicology and Chemistr., 15: 1883-1893

Barakat A.O., Qian Y., Kim M., and Kennicutt M.C., 2001. Chemical characterization of naturally weathered oil residues in arid terrestrial environment in Al-Alamein, Egypt,Environment International, 27: 291-310

Douabul A.A., Farid W.A., Al-Saad  H.T., and AlMaarofi S.S., 2012,Hydrocarbons in soil from Basrah oil-rich governorate. American Journal of Environmental Science, 8 (5): 563-568

Ekpo B.O. , Fubara E. P., Ekpa O. D. ,and Marynowski H.L.,2012, Determination hydrocarbon sources using n-alkane and PAH distribution indices in sediments from coastal areas of Bonny river in Niger Delta, Nigeria. Asian Research Publishing Network Journal of Earth Sciences, 1(1): 9-20

Fagbote E.O., and Olanipekun E.O., 2012, Characterization, distribution, sources and origins of aliphatic hydrocarbons of the soils of Agbabu Bitumen Deposit Area, Western Nigeria. African Journal of Scientific Research, 19 (1): 563-585

Harji R. R., Yvenat A,.and Bhosle N.B., 2008, Sources of hydrocarbons in sediments of the Mandovi estuary and the Marmugoa harbour, west coast of India,. Environment International, 34: 959-965

Iturbe R., Flores R.M., Flores C.R., and Torres L. G. 2004, “TPH contaminated Mexican soil. Health risk assessment and the first year of changed”. Environmental Monitoring and Assessment, 91 (1-3): 237-255

Jeng W., and Huh C., 2006, A comparison of sedimentary aliphatic hydrocarbon distribution between the southern Okinawa Trough and a nearby river with high sediment discharge,Estuarine Coastal and Shelf Science, 66: 217-224

Kèlomè N.C., Faure P., Mathieu O., Lévêque J., and Oyédé L.M. 2012, Evidence of organic contamination in urban soils of Cotonou Town (Benin),British Journal of Environment and Climate Change, 2(1): 99-112

Punyu V.R., Harji R.R., Bhosle N.B., Sawant S.S., and Venkat K.,2013,  n-Alkanes in surficial sediments of Visakhapatnam harbour, east coast of India. Journal of Earth System Science, 122 (2): 467-477

Sadler R., and Connell D., 2003. Analytical Methods for the Determination of Total Petroleum Hydrocarbons in Soil. Proceedings of the Fifth National Workshop on the Assessment of Site Contamination, NEPC Service Corporation, Adelaide, Australia, pp. 133-150

Teaf Christopher M., 2008, Polycyclic Aromatic Hydrocarbons (PAHs) in Urban Soil: A Florida Risk Assessment Perspective, International Journal of Soil, Sediment and Water, 1(2): 12-16

Tolosa I., de Mora S.J., Fowler S.W., Villeneuve J., Bartocci J.,  and Cattini C., 2005, Aliphatic and aromatic hydrocarbons in marine biota and coastal sediments from the Gulf and the Gulf of Oman, Marine Pollution Bulletin, 50: 1619-1633

Tuteja G., Rout C., and Bishhnoi N.R., 2011, Quantification of polycyclic aromatic hydrocarbons in leafy and underground vegetables: A case study around Panipat City, Haryana, India, Environmental Science and Technology, 4: 611-620

Wang C., Wang W., He S., Due  J.,and Sun Z.,2011, Sources and distribution of aliphatic and polycyclic aromatic hydrocarbons in Yellow River Delta Nature Reserve, China, Applied Geochemistry. 26: 1330-1336

Williams S.D., Ladd D.E., and Farmer J.J., 2006, Fate and transport of petroleum hydrocarbons in soil and ground water at Big South Fork National River and Recreation Area, Tennessee and Kentucky, 2002-2003: U.S. Geological Survey Scientific Investigations Report 2005-5104, 29 p.

Zhang J., Wang R., Du X., Li  F. and Dai1 J.,2012, Characterization of contamination, source and degradation of petroleum between  upland and paddy fields based on geochemical characteristics and phospholipid fatty acids, Journal of Environmental Sciences, 24(11):1995-2003

Zrafi I., Hizem L., Chalghmi H., Ghrabi A., Rouabhia M., and Saidane‐ Mosbahi D., 2013, Aliphatic and Aromatic Biomarkers for Petroleum Hydrocarbon Investigation in Marine Sediment, Journal of Petroleum Science Research, 2(4): 145-155
